Creating Custom VPC Endpoints with AWS PrivateLink
Story Time: So you’re sitting there one day, feet up, lazily watching the monitoring dashboard for the service you’ve just launched. The boss barges in, “No one wants to buy our service unless they can get it directly in their VPC.” Piss on it. You put your feet down, sit up straight, and start working on setting up AWS PrivateLink.
What is PrivateLink?Permalink
AWS PrivateLink is a networking service that enables you to securely expose your applications or services to other VPCs or on-premises networks, without requiring them to traverse the public internet or use VPN connections. With PrivateLink, you can create private endpoints in a consumer VPC that connect directly to services in a service provider VPC, using private IP addresses. This allows you to keep all traffic between the consumer and provider within the AWS network, improving security and reducing latency.
Claude 3 Opus
OK, But Why Do We Want It?Permalink
There are several reasons to make your service available via PrivateLink such as:
- Security: By keeping traffic within the AWS network and avoiding the public internet, you reduce the risk of data breaches or unauthorized access to your service. Consumers can access your service without needing to open up their firewall or whitelist your public IPs.
- Simplified Networking: PrivateLink eliminates the need for the likes of VPNs or VPC Peering. Consumers can easily create an endpoint in their VPC and start using your service, without any additional setup.
- Improved Performance: Because traffic stays within the AWS network, PrivateLink connections offer lower latency and more consistent performance compared to connections over the public internet.
Game PlanPermalink

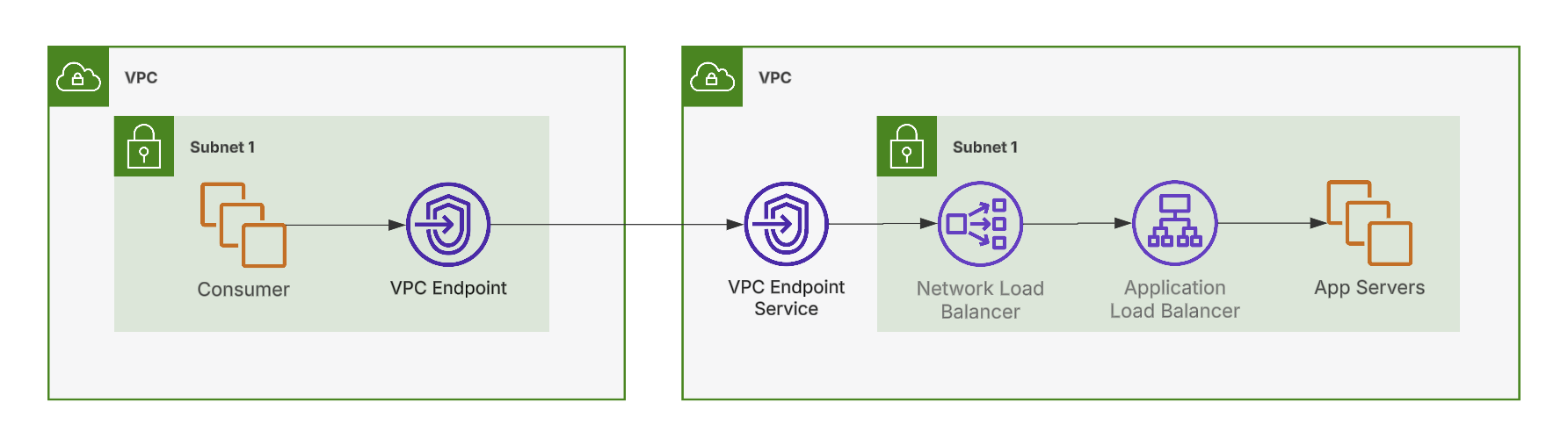

This is what we’re going to build.
We create a VPC Endpoint Service that users can then create Endpoints from in their own VPCs. The Endpoint Service points to a Network Load Balancer. We point this NLB to an Application Load Balancer that handles our SSL encryption. From there, the ALB forwards the request to an EC2 instance running our application.
Using this we can create a VPC Endpoint in our consumer VPC. The EC2 instance in the consumer VPC can access the service running on the app servers running in the service VPC via the endpoint without needin to go out over the internet.
Base TerraformPermalink
The first thing we’re going to need is some base Terraform configuration.
terraform {
required_version = "~> 1.5"
required_providers {
aws = {
source = "hashicorp/aws"
version = "~> 5.39"
}
tls = {
source = "hashicorp/tls"
version = "~> 4.0"
}
}
}
We’ll need the AWS provider, and because this is only a demo and we’re too lazy to get a signed certificate, we’ll make use of the TLS provider.
data "aws_availability_zones" "available" {
state = "available"
}
We want a list of AZs in our region for later use.
Creating the ServicePermalink
Our service is going to be made up of an EC2 instance behind an Application Load Balancer. We also need a Network Load Balancer for the VPC Endpoint interface.
NetworkPermalink
The service sits in its own VPC. We’re going to create a subnet for each AZ.
resource "aws_vpc" "service" {
cidr_block = "10.0.0.0/16"
}
resource "aws_subnet" "service" {
count = length(data.aws_availability_zones.available.names)
vpc_id = aws_vpc.service.id
cidr_block = cidrsubnet(aws_vpc.service.cidr_block, 4, count.index)
availability_zone = data.aws_availability_zones.available.names[count.index]
map_public_ip_on_launch = true
}
We also want a Internet Gateway
resource "aws_internet_gateway" "service" {
vpc_id = aws_vpc.service.id
}
resource "aws_route_table" "service" {
vpc_id = aws_vpc.service.id
route {
cidr_block = "0.0.0.0/0"
gateway_id = aws_internet_gateway.service.id
}
}
resource "aws_route_table_association" "service" {
count = length(aws_subnet.service)
subnet_id = aws_subnet.service[count.index].id
route_table_id = aws_route_table.service.id
}
We’re going to use a Security Group in multiple places. It needs HTTP/S from inside the VPC, and access out to the intenet so we can install some software on the EC2 instance running our service.
resource "aws_security_group" "service" {
name = "service"
vpc_id = aws_vpc.service.id
}
resource "aws_vpc_security_group_ingress_rule" "service_https" {
security_group_id = aws_security_group.service.id
description = "HTTPS from Service VPC"
cidr_ipv4 = aws_vpc.service.cidr_block
from_port = 443
to_port = 443
ip_protocol = "tcp"
}
resource "aws_vpc_security_group_ingress_rule" "service_http" {
security_group_id = aws_security_group.service.id
description = "HTTP from Service VPC"
cidr_ipv4 = aws_vpc.service.cidr_block
from_port = 80
to_port = 80
ip_protocol = "tcp"
}
resource "aws_vpc_security_group_egress_rule" "service_all" {
security_group_id = aws_security_group.service.id
description = "Allow all egress"
cidr_ipv4 = "0.0.0.0/0"
ip_protocol = "-1"
}
Service ComputePermalink
Speaking of an EC2 instance…
data "aws_ami" "amazon_linux_2023" {
owners = ["amazon"]
most_recent = true
filter {
name = "name"
values = ["al2023-ami-2023.*-x86_64"]
}
filter {
name = "architecture"
values = ["x86_64"]
}
filter {
name = "virtualization-type"
values = ["hvm"]
}
}
resource "aws_instance" "service" {
ami = data.aws_ami.amazon_linux_2023.id
instance_type = "t3.nano"
subnet_id = aws_subnet.service[0].id
vpc_security_group_ids = [aws_security_group.service.id]
user_data = file("${path.module}/userdata.sh")
key_name = var.key_name
tags = {
Name = "PrivateLink Demo Service"
}
}
The userdata for the instance will simply install and start Nginx.
#!/bin/sh
sudo yum install -y nginx.x86_64
sudo systemctl start nginx
Application Load BalancerPermalink
With our instance running, we can create an Application Load Balancer to route traffic to it.
resource "aws_lb" "service_alb" {
name = "service-alb"
internal = true
load_balancer_type = "application"
security_groups = [aws_security_group.service.id]
subnets = aws_subnet.service[*].id
}
We need to create a Target Group containing our EC2 instance.
resource "aws_lb_target_group" "service_alb" {
name = "service"
port = 80
protocol = "HTTP"
vpc_id = aws_vpc.service.id
}
resource "aws_lb_target_group_attachment" "service_alb" {
target_group_arn = aws_lb_target_group.service_alb.arn
target_id = aws_instance.service.id
port = 80
}
The Listener for the ALB needs a certificate if we want to use HTTPS. We’re going to use the TLS Terraform provider for this, but generatlly you’d want a cetificate signed by a trusted CA.
resource "tls_private_key" "service" {
algorithm = "RSA"
}
resource "tls_self_signed_cert" "service" {
private_key_pem = tls_private_key.service.private_key_pem
subject {
common_name = aws_lb.service_alb.dns_name
organization = "ACME Demos"
}
validity_period_hours = 72 # 3 days
allowed_uses = [
"key_encipherment",
"digital_signature",
"server_auth",
]
}
resource "aws_acm_certificate" "service" {
private_key = tls_private_key.service.private_key_pem
certificate_body = tls_self_signed_cert.service.cert_pem
}
Finally we can add our listener to the Load Balancer.
resource "aws_lb_listener" "service_alb" {
load_balancer_arn = aws_lb.service_alb.arn
port = "443"
protocol = "HTTPS"
ssl_policy = "ELBSecurityPolicy-2016-08"
certificate_arn = aws_acm_certificate.service.arn
default_action {
type = "forward"
target_group_arn = aws_lb_target_group.service_alb.arn
}
}
Network Load BalancerPermalink
Now that we have our Application Load Balancer set up and pointing to the EC2 instace, we can put the Network Load Balancer in front of it.
resource "aws_lb" "service_nlb" {
name = "service-nlb"
load_balancer_type = "network"
enable_cross_zone_load_balancing = false
internal = true
subnets = aws_subnet.service[*].id
}
The Load Balancer needs to target the ALB.
resource "aws_lb_target_group" "service_nlb" {
name = "service-nlb"
port = "443"
protocol = "TCP"
target_type = "alb"
vpc_id = aws_vpc.service.id
health_check {
matcher = "200"
path = "/"
port = "443"
protocol = "HTTPS"
}
}
resource "aws_lb_target_group_attachment" "service_nlb" {
port = aws_lb_listener.service_nlb.port
target_group_arn = aws_lb_target_group.service_nlb.arn
target_id = aws_lb_listener.service_alb.load_balancer_arn
}
And connecting the listener to the LB.
resource "aws_lb_listener" "service_nlb" {
load_balancer_arn = aws_lb.service_nlb.arn
port = 443
protocol = "TCP"
default_action {
type = "forward"
target_group_arn = aws_lb_target_group.service_nlb.arn
}
}
Endpoint ServicePermalink
The last thing to do is to create the VPC Endpoint Service
resource "aws_vpc_endpoint_service" "service" {
acceptance_required = false
network_load_balancer_arns = [aws_lb.service_nlb.arn]
}
And share it with our target account. This is the current account for now but can be changed as needed.
data "aws_caller_identity" "current" {}
resource "aws_vpc_endpoint_service_allowed_principal" "allowed_aws_accounts" {
vpc_endpoint_service_id = aws_vpc_endpoint_service.service.id
principal_arn = "arn:aws:iam::${data.aws_caller_identity.current.account_id}:root"
}
Consuming the ServicePermalink
With the service created we can move on to standing up an EC2 instance to consume it.
NetworkPermalink
First thing we’re going to want to do is create a network. This is essentially the same as the Service VPC.
resource "aws_vpc" "consumer" {
cidr_block = "10.0.0.0/16"
}
resource "aws_subnet" "consumer" {
count = length(data.aws_availability_zones.available.names)
vpc_id = aws_vpc.consumer.id
cidr_block = cidrsubnet(aws_vpc.service.cidr_block, 4, count.index)
availability_zone = data.aws_availability_zones.available.names[count.index]
map_public_ip_on_launch = true
}
resource "aws_internet_gateway" "consumer" {
vpc_id = aws_vpc.consumer.id
}
resource "aws_route_table" "consumer" {
vpc_id = aws_vpc.consumer.id
route {
cidr_block = "0.0.0.0/0"
gateway_id = aws_internet_gateway.consumer.id
}
}
resource "aws_route_table_association" "consumer" {
count = length(aws_subnet.consumer)
subnet_id = aws_subnet.consumer[count.index].id
route_table_id = aws_route_table.consumer.id
}
Consumer ComputePermalink
We need an EC2 instance we can log into. We’ll take the name of a key as a variable.
variable "key_name" {
description = "Name of the Key Pair to use for the EC2 instances"
type = string
}
resource "aws_instance" "consumer" {
ami = data.aws_ami.amazon_linux_2023.id
instance_type = "t3.nano"
subnet_id = aws_subnet.consumer[0].id
vpc_security_group_ids = [aws_security_group.consumer.id]
key_name = var.key_name
tags = {
Name = "PrivateLink Demo Consumer"
}
}
resource "aws_security_group" "consumer" {
name = "consumer"
vpc_id = aws_vpc.consumer.id
}
resource "aws_vpc_security_group_ingress_rule" "consumer_ssh" {
security_group_id = aws_security_group.consumer.id
description = "SSH from the internet"
cidr_ipv4 = "0.0.0.0/0"
from_port = 22
to_port = 22
ip_protocol = "tcp"
}
resource "aws_vpc_security_group_egress_rule" "consumer_all" {
security_group_id = aws_security_group.consumer.id
description = "Allow all egress"
cidr_ipv4 = "0.0.0.0/0"
ip_protocol = "-1"
}
output "consumer_public_ip" {
description = "Public IP address of the Consumer instance"
value = aws_instance.consumer.public_ip
}
PrivateLinkPermalink
Our VPC Endpoint is going to need a Security Group that allows ingress from the VPC.
resource "aws_security_group" "consumer_privatelink" {
name = "consumer_privatelink"
vpc_id = aws_vpc.consumer.id
}
resource "aws_vpc_security_group_ingress_rule" "consumer_privatelink_https" {
security_group_id = aws_security_group.consumer_privatelink.id
description = "HTTPS from Consumer VPC"
cidr_ipv4 = aws_vpc.consumer.cidr_block
from_port = 443
to_port = 443
ip_protocol = "tcp"
}
resource "aws_vpc_security_group_egress_rule" "consumer_privatelink_all" {
security_group_id = aws_security_group.consumer_privatelink.id
description = "Allow all outbound"
cidr_ipv4 = "0.0.0.0/0"
ip_protocol = "-1"
}
And we can finally create the VPC Endpoint.
resource "aws_vpc_endpoint" "consumer_privatelink" {
service_name = aws_vpc_endpoint_service.service.service_name
security_group_ids = [aws_security_group.consumer_privatelink.id]
subnet_ids = aws_subnet.consumer[*].id
vpc_endpoint_type = "Interface"
vpc_id = aws_vpc.consumer.id
}
output "consumer_endpoint_dns_names" {
description = "Domain names of the Consumer VPC Endpoint"
value = [for dns_entry in aws_vpc_endpoint.consumer_privatelink.dns_entry : "https://${dns_entry.dns_name}"]
}
TestingPermalink
With all this deployed you should be good to test it out. Connect to the Consumer EC2 instance using the public IP
address in the Terraform outputs. Once connected, cURL the first VPC Endpoint URL in the consumer_endpoint_dns_names
output variable. You should see the standard Nginx landing page.
ConclusionPermalink
In this post, we walked through the process of creating VPC endpoints with AWS PrivateLink using Terraform. We started by setting up a service provider EC2 instance inside a VPC behind an Application Load Balancer and Network Load Balancer. We then created a VPC Endpoint Service and shared it with a consumer VPC, allowing the consumer to securely access the service over the AWS network.
By using PrivateLink, we were able to improve the security, performance, and operational efficiency of our service. Consumers can now access the service without exposing it to the public internet or configuring complex network settings. Traffic stays within the AWS network, reducing latency and increasing compliance.
One important aspect of the setup is the allowed principal configuration, which controls which AWS accounts or IAM users can create endpoints to connect to the service. Here we’ve manually specified the allowed principal based on the current AWS account ID. However, in a real-world scenario, you may want to automate this depending on how new consumers are to be added to the system.
AWS PrivateLink is a useful service for securely sharing resources across VPCs and accounts. It can help achieve networking goals while maintaining high levels of security and performance. The specific implementation details will depend on your use case and requirements, but the general principles outlined in this post should provide a good starting point for understanding and working with PrivateLink.
If you have any issues with the Terraform, you can find a working implementation on my GitHub.
